DapuStor Enterprise NVMe SSD - Haishen2

DapuStor enterprise SSD Haishen2 is built on the latest 64L 3D eTLC NAND and professional enterprise controller. In the digital information age, DapuStor is the best solution provider that provides enterprise and data center customers complete the intelligent storage technology, products and solutions with higher performance, lower power consumption and easier maintenance, as well as customized features such as Open Channel, KV and Zoned Namespace.

Download

Applications：

Server/Storage system

Streaming & CDN

Data Center

Video Surveillance

Professional Photography

Edge Computing

Cloud

5G & IoT

Customization

Key Features：

Higher IOPS/Watt for lower TCO

With high IOPS and low power consumption by adopting unique Smart-IO technology and industry leading enterprise controller, DapuStor Haishen2 brings 20%~40% higher IOPS/Watt ratio for lower TCO.

Haishen3

More Secure and Reliable

End-to-end data protection on both Firmware and Hardware path, including DDR ECC, LDPC, power loss protection, etc.

Longer Lifetime equal to Lower Cost

Machine learning algorithm Smart-IO is used to lower WAF and increase SSD lifetime

Haishen3

Professional Customization

Based on portable modular design and algorithm, Haishen2 supports advanced features customizations such as Dual Port, SRIOV, Multi-stream, IOD, etc., as well as new technologies such as Open Channel, KV, and Zoned Namespace.

Product Spec：

Model No	H2200		H2100
Capacity (TB1)	0.96	1.92	0.8	1.6
Outline	U.2 & HHHL
Interface Protocol	PCIe3.0 x 4 NVMe 1.3
Flash Type	64L 3D eTLC NAND
Read Bandwidth (128KB) MB/s2	3300	3300	3300	3300
Write Bandwidth (128KB) MB/s2	950	1900	950	1900
Random Read (4KB) KIOPS3	390	650	390	650
Random Write (4KB) KIOPS3	43	95	95	195
Power Consumption4 (Typ./Max) Watt	7.0/8.5	7.0/9.5	7.0/8.5	7.0/9.5
4K Random Latency (Typ.) R/W μs5	99/20		98/17
4K Sequential Latency (Typ.) R/W μs5	15/19		14/16
Lifespan	1 DWPD6		3 DWPD⁶
Uncorrectable Bit Error Rate (UBER)	<10^-17
Mean Time Between Failure (MTBF)	2 million hours
Supported OS	RHEL, SLES, CentOS, Ubuntu, Windows Server, VMware ESXi
Certification	FCC, CE, ROHS, REACH, WEEE, PCI express, NVM express

Note:
1. TB = 1,000, 000, 000,000Byte.Note:

2. MB/s = 1,000,000 Bytes per second. Performance is measured with 1 worker*Queue Depth 256*128KB (131,072 bytes) for sequential read and write bandwidth on LINUX*Cent OS 7.5 by using FIO.

3. Performance is measured with 4 workers*Queue Depth 64*4KB (4096 bytes) for random read and write IOPS on LINUX*Cent OS 7.5 by using FIO.

4. Typical power Consumption is measured with 4 workers*Queue Depth 64*4096 bytes for random read/write ratio (7/3); Max power Consumption is measured with 1 worker* Queue Depth 128*131,072 bytes for sequential write.

5. μs = Microsecond. Performance is measured with 1 worker *Queue Depth 1*4KB (4096 bytes) for random/ sequential read and write average latency on LINUX*Cent OS 7.5 by using FIO.

6. DWPD: Drive Writes Per Day, last for 5 years.

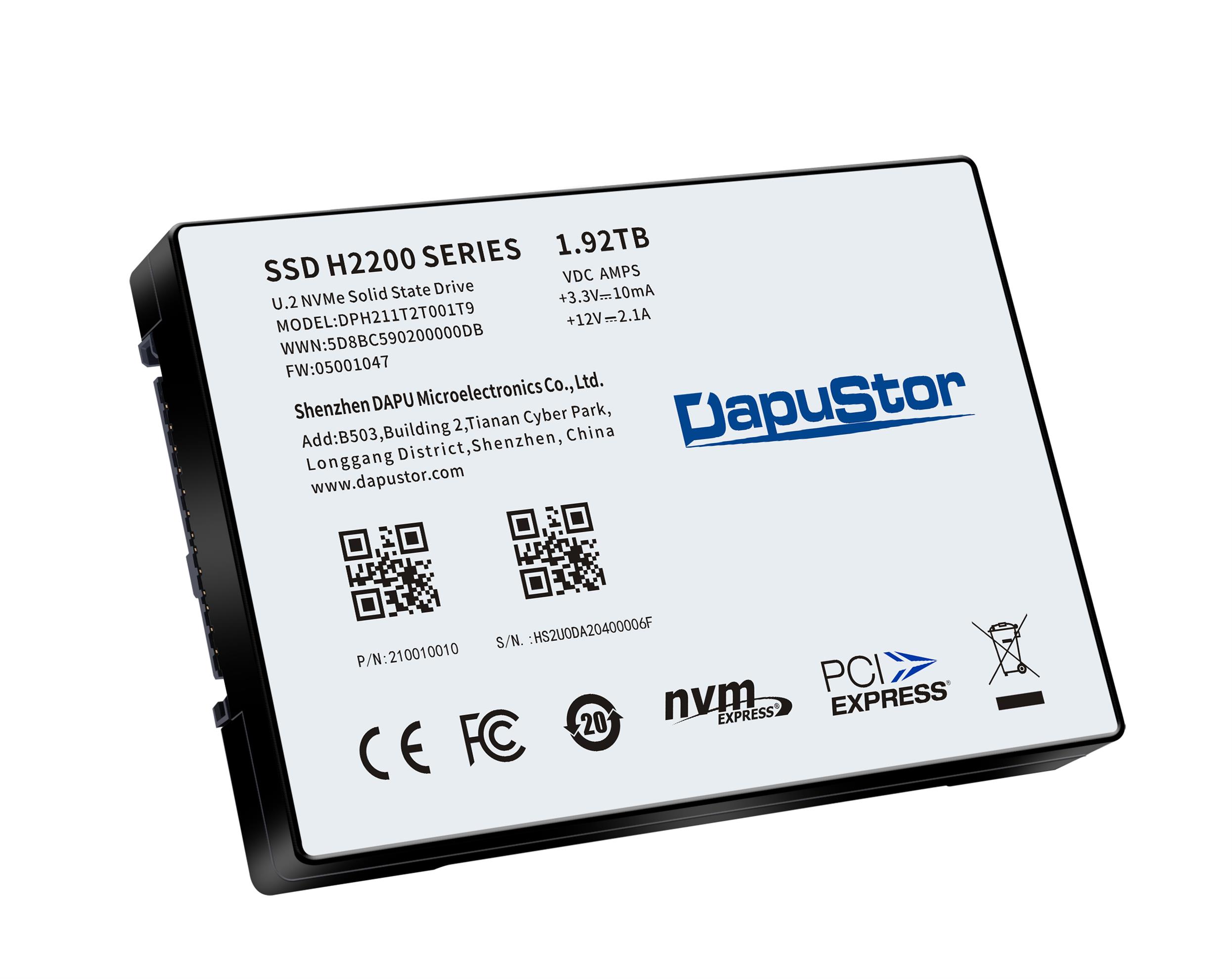

Product Pictures：

Haishen 2
