DapuStor Enterprise NVMe SSD - Haishen3


DapuStor Haishen3 Series is built on KIOXIA 96L/112L 3D eTLC NAND with a leading enterprise controller and provides excellent performance for enterprise-level data storage solutions. For the storage capacity, DapuStor Haishen3 Series supports storage capacities from 0.96 TB to up to 7.68 TB and offers customised features such as Open Channel, KV, and Zoned Namespace.


DapuStor -Haishen3 B4(EN)


DapuStor -Haishen3 B5(EN)



  Application:



Server



Data Center


Storage system


AI&Data Analytics



Stream


Custmize


Edge Computing


Streaming & CDN



Customization


  Key Features:




Higher IOPS/Watt For Lower TCO

DapuStor Haishen3 Series is optimised for high speed with low power consumption. By adopting unique Smart-IO technology with an

industry-leading enterprise controller, DapuStor Haishen3 Series

generates a 20% to 40% higher IOPS/Watt ratio for lower TCO.


Haishen3




Haishen3




Enhanced Security And Reliability


For security and reliability, the DapuStor Haishen3 Series enhances

end-to-end data protection on both firmware and hardware paths,

including DOR ECC, LDPC, and power loss projection.





Longer Lifetime


DapuStor Haishen3 Series adopts the machine learning algorithm

Smart-10 to lower WAF and extend SSD lifespan.




Haishen3




Haishen3




Orie Size Fitting All


The DapuStor Haishen3 Series with KIOXIA 96L 3D eTLC NAND offers various capacity options, higher storage density and less space.



Professional Customisation


Based on a portable, modular design, and algorithm the DapuStor

Haishen3 Series supports advanced features customisation such as

Dual Port, SRIOV, Multi-stream, 10D, and new technologies such as

Open Channel, KV, and Zoned Namespace.



Haishen3



  Product Spec:


PCN

(Product Code Number)

H3200

H3100

Capacity(TB)

0.96

1.92

3.84

7.68

0.81.63.26.4

Form Factor

U.2 / AIC

Interface Protocol

PCIe 3.0 x4, NVMe 1.3

Flash Type

96L 3D eTLC NAND

Read Bandwidth (128KB) MB/s

3500

3500

3500

3500

3500

3500

3500

3500

Write Bandwidth (128KB) MB/s

1350

2700

3100

3100

1350

2700

3000

3000

Random Read (4KB) KIOPS

580

820

820

820

580

820

820

820

Random Write (4KB) KIOPS

68

115

130

125

140

240

250

230

Power Consumption(Typ./Max) Watt

7.0/8.5

8.0/10

9.0/11

10/12.5

7.0/8.5

7.5/10

8.0/11

8.5/12.5

4K Random Latency (Typ.) R/W μs

85/15

85/15

4K Sequential Latency (Typ.) R/W μs

15/15

15/15

Endurance

1 DWPD

3 DWPD

UBER

1 sector per 10^17 bits read

MTBF

2 million hours

Supported OS

RHEL, SLES, CentOS, Ubuntu, Windows Server, VMware ESXi

Certification

FCC, CE, ROHS, REACH, WEEE, PCI express, NVM express


PCN

(Product Code Number)

H3200H3100
Capacity(TB)3.847.683.26.4
Form Factor
U.2
InterfacePCIe 3.0 x4, NVMe 1.3
Flash Type112L 3D eTLC NAND
Read Bandwidth (128KB) MB/s3500350035003500
Write Bandwidth (128KB) MB/s2900310029003100
Random Read (4KB) KIOPS820820820820
Random Write (4KB) KIOPS120130260250
Power Consumption(Typ./Max) Watt9.5/129.5/129.0/129.0/12
4K Random Latency (Typ.) R/W μs81/1281/13
4K Sequential Latency (Typ.) R/W μs14/1214/13
Endurance

1 DWPD

3 DWPD

UBER

1 sector per 10^17 bits read

MTBF2 million hours
Supported OSRHEL, SLES, CentOS, Ubuntu, Windows Server, VMware ESXi
CertificationFCC, CE, ROHS, REACH, WEEE, PCI express, NVM express

*Differences in hardware, software, or configuration will affect actual test results.

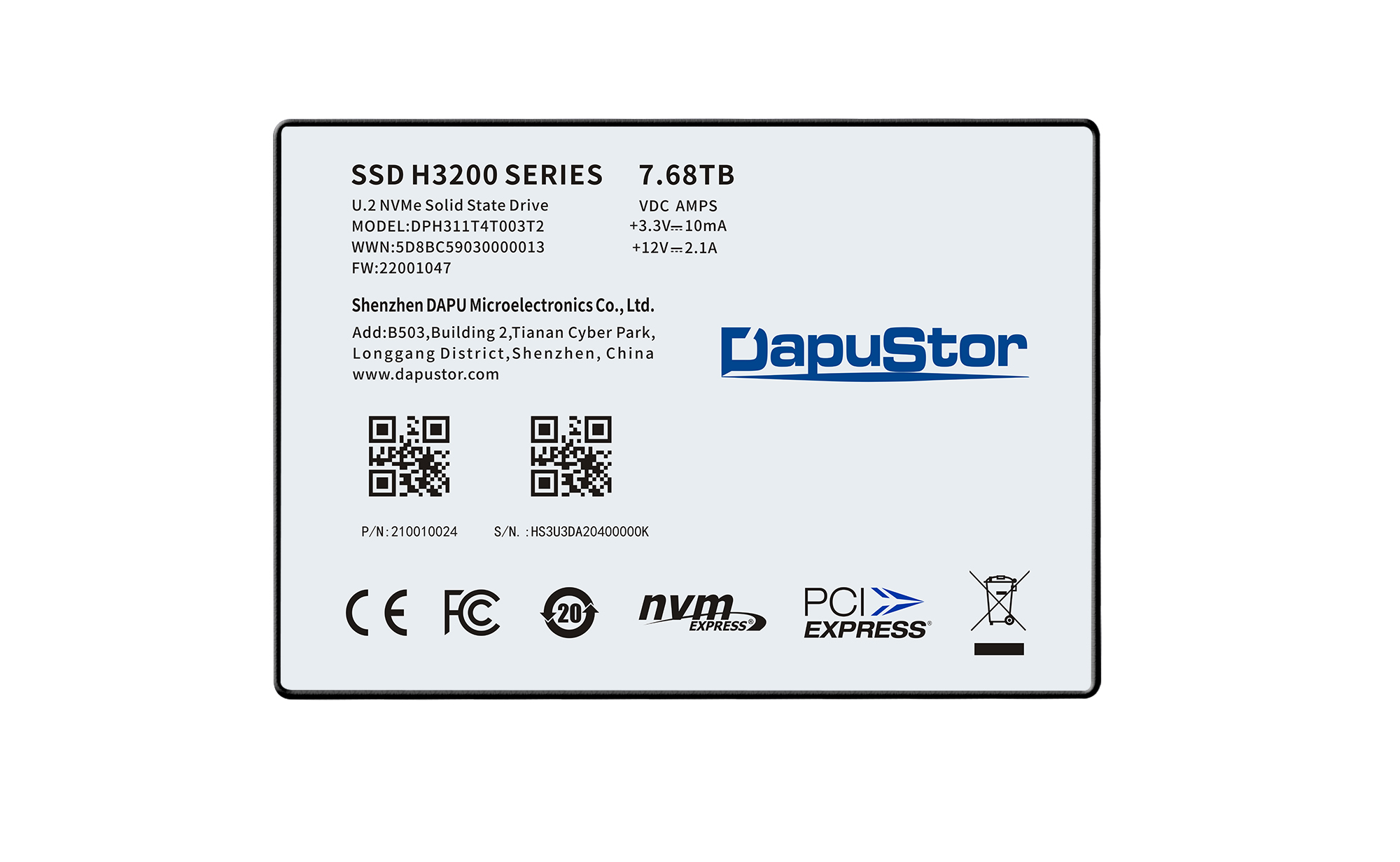

  Product Pictures:
