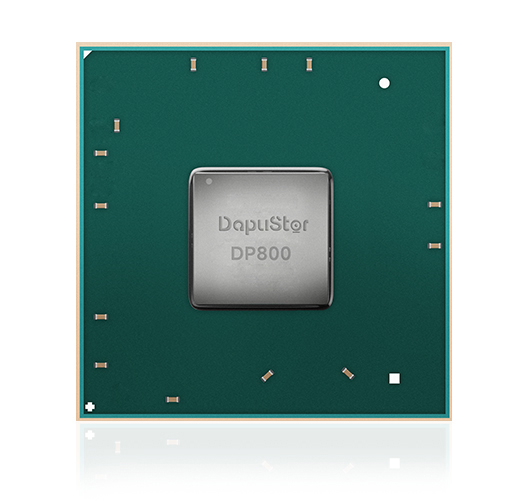

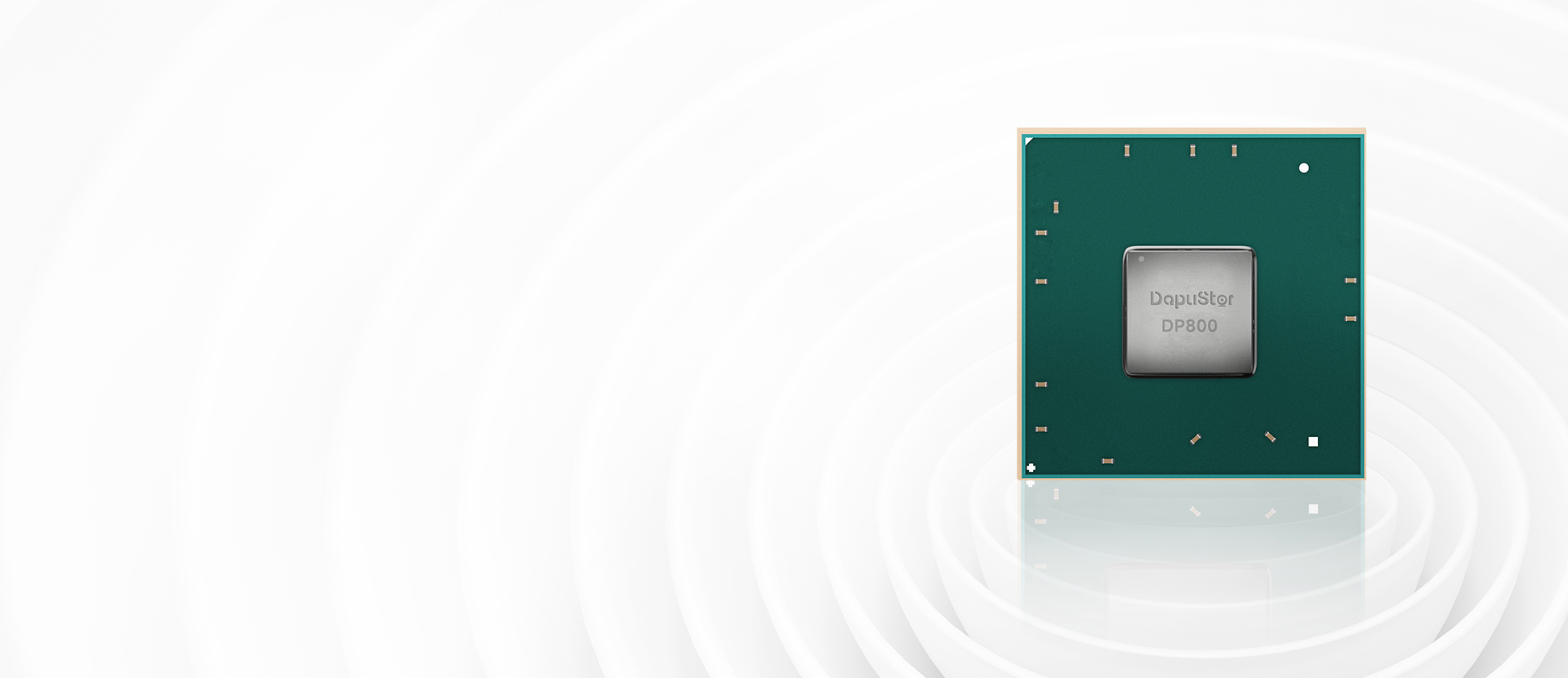

DapuStor® DP800 Series PCIe Gen5 enterprise SSD controller chip (DP800) enables enterprises and data centers to achieve high-performance, high-capacity SSDs (Solid State Drives) using next-generation NAND technology. The DP800 series includes two product models, DP816 and DP808, and supports the standard NVMe (NVM Express) interface, optimized for high-performance 4K random read and write operations and all on-chip flash memory management operations, while minimizing the use of host processing and memory resources. DP800 supports ultra-high performance, high-capacity enterprise-grade SSDs, and has platform flexibility and security, making it a reliable choice for enterprise-grade SSD controller chips.
PCIe SSDs with NVMe controllers can greatly improve the storage performance of enterprises and data centers by enabling faster random data access and faster transfer rates, alleviating interface bottlenecks.
The DapuStor DP800 controller chip series is an NVMe-compliant PCIe enterprise flash controller that significantly improves read and write performance while also significantly reducing latency and power consumption. The DP800 controller chip series will bring significant innovation to the next-generation storage and computing system architecture, creating more value for users.
Key Features
Supported Interfaces & Protocols
High Performance
Transparent Compression
High Security
Superior Data Integrity
Wide Flash Compatibility
Optimized Storage Management Engine
High Capacity and Flexible Scalability
• PCIe x4 dual-port or PCIe 5.0 x8 single-port • PCIe Dual-Port • NVMe 2.0, NVMe MI 1.2 • SR-IOV • ZNS-Zoned Name Space • FDP-Flexible Data Placement • Supports Hundreds of NameSpace
• Sequential Read/Write 28/22GB/s @GEN5x8, 14/12GB/s @GEN5x4 • Random Read 6.0M IOPS @GEN5x8, 3.5M IOPS@GEN5x4, Random Write 1600K IOPS (OP 20%) • Random Write Latency 3.5 μs
• Hardware RAID5/RAID6 • TCG/AES/RSA/SHA/TRNG Support • Encryption Drive Support • Secure Boot • On-Chip Root of Trust (RoT)
• DDR5/4 DRAM with ECC (1-bit correction per 32/64 bits) • DIF Protection (External & Internal) • Full Internal Data Path Protection (DPP) • SRAM Data Protection (EDCC or CRC) • Advanced LDPC 4KB Error Correction • Hardware RAID5/RAID6 Protection • Enhanced Power Loss Protection • Enhanced End-to-End Data Protection (MPECC) • Hardware Real-time Compression Verification • Built-in Temperature Sensor for Junction Temperature Monitoring
• SLC/MLC/TLC/3D-TLC/QLC • Supports Hybrid Flash (e.g., QLC & SLC) • 16 Channels, Single I/O up to 3,200MT/s (ONFI 5.1)
● Smart IO/ Smart ECC Technology
• Up to 61.44TB per DP800 • Scalable Cascade of DP800 Controllers • 8-core High-performance CPU for Customization
